Name: Putco Luminix Off-Road LED Light Bars
Brand: Putco
SKU: Luminix-LED-Light-Bar
Availability: InStock

Features

Super Bright Off-road Lights: 50,000 Hour LED Bulb life. 6000K Color Temperature.
Superior Performance: 15 degree focus lenses with output from 1200LM to 27,600LM.

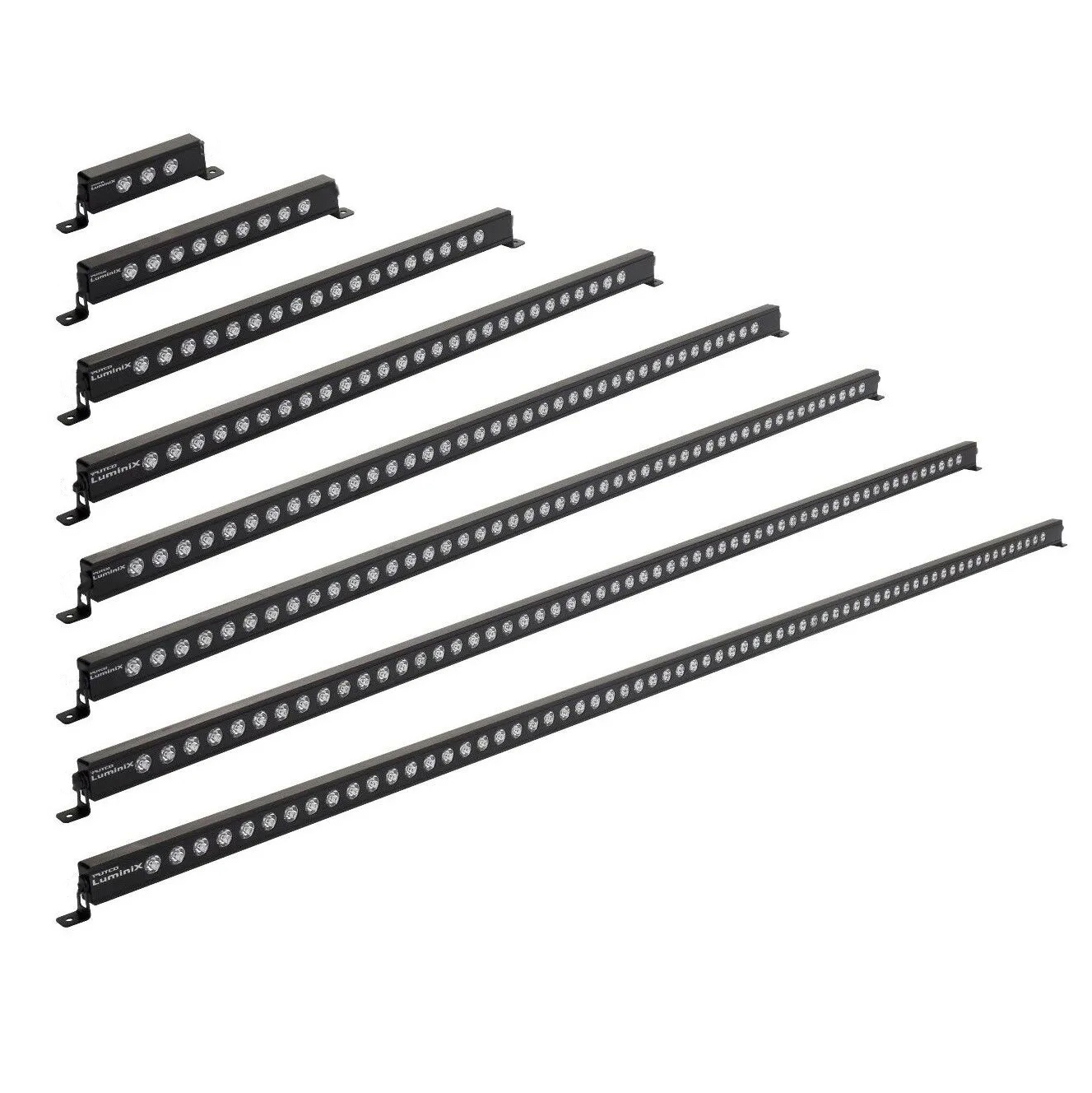

Light Bar Options: 6″ to 70″ in straight and curved designed with 3 watt LEDs.
Matte Black Billet Anodized Aluminum: Crafted with a sealed, anodized aluminum that is protected with a UV protected matte black finish.
Powerful Offroad Lighting: 12 Volts, NICHIA LEDs to accomplish high LUMEN output with 3 Watts per LED & only a .75 amps draw per LED.
Thinnest LED Bar in the World: Made right here in the USA, by Putco of Des Moines IA.
Offroad Rated Light Bar: IP69K rated for dusty and moisture protection for years of use. Operating temperature (Equal or greater to => -100 Degrees F to 180 Degree F.
Argon Injected LED Housing: Zero moister ingression, superior thermal insulation barrier, eliminates corrosion & non-reactive to other elements.

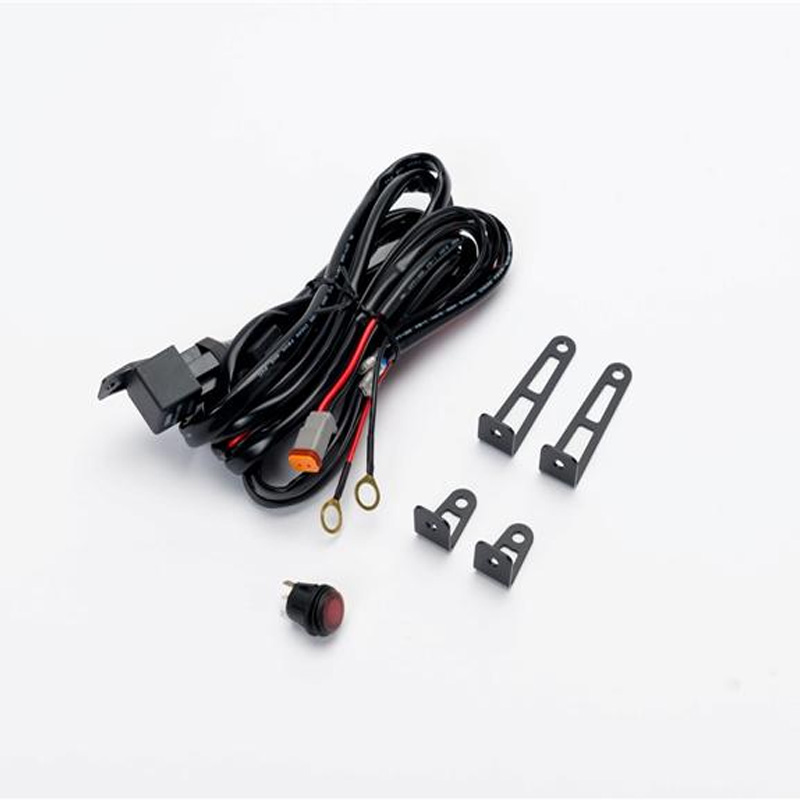

Includes 12 volt full wiring harness with deutsche connectors included (can be used for 12v, 24v and 36v).
Industry leading 3 year warranty.
Made by Putco, Des Moines, IA.

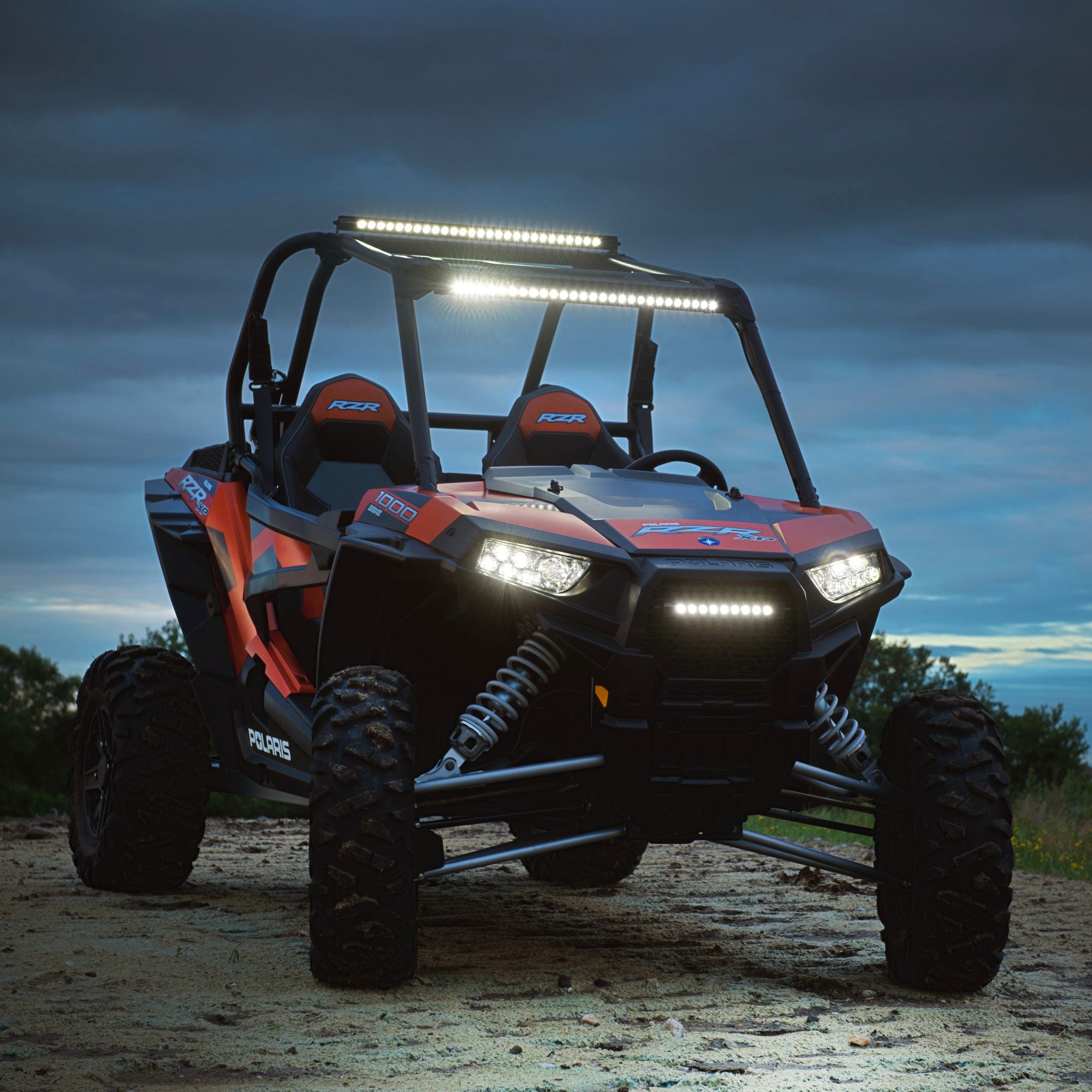

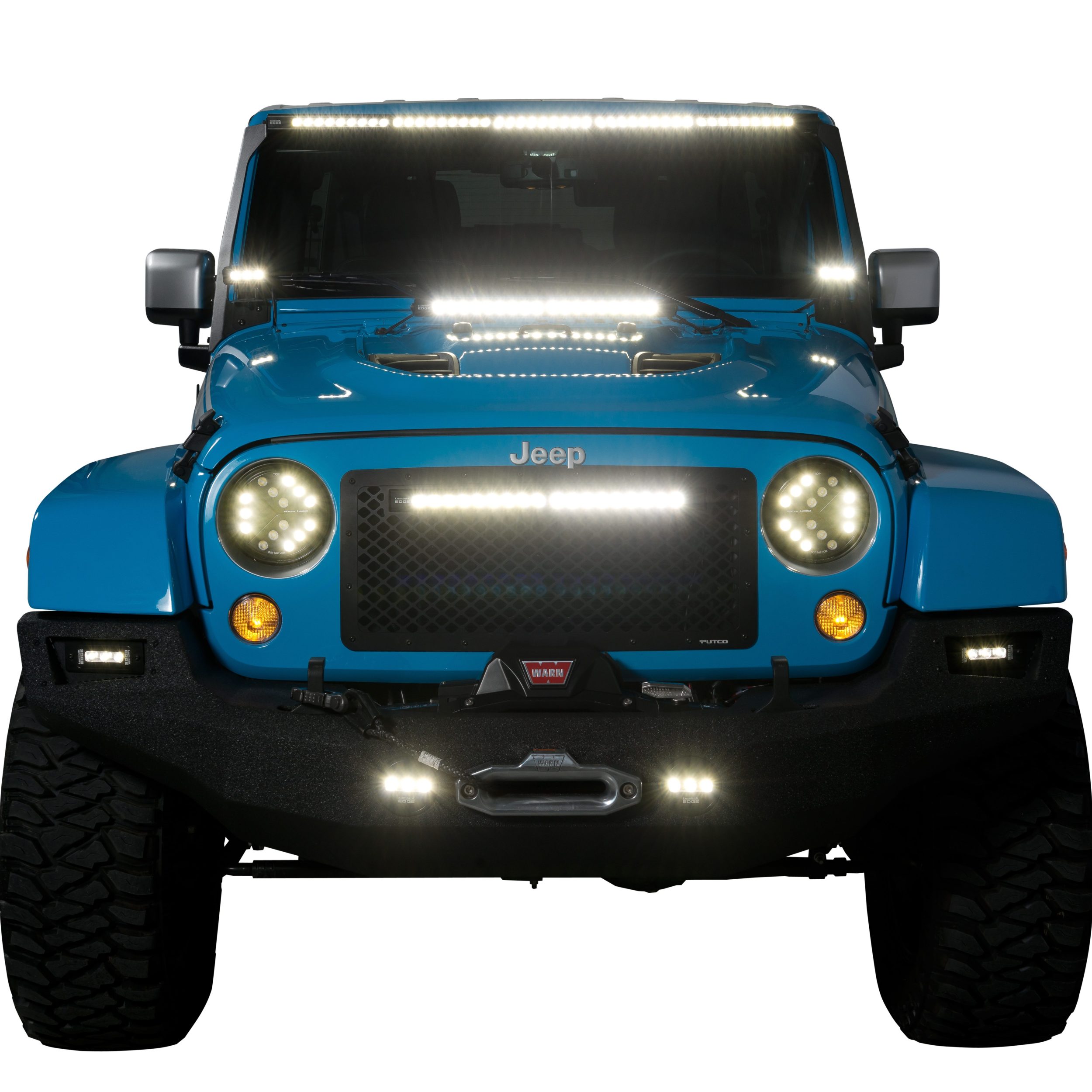

Putco’s Luminix LED Light Bar is designed & engineered for a 15 degree focus lenses with output from 1200LM to 27,600LM for offroad lighting use. Built to handle the elements of all your adventures and creates a super bright LED beam pattern. These offroad led light bars for trucks, side by sides, trailers and more are powered by 12 volt can also do 24 volts and 36 volts. Putco Luminix light bars are the thinnest light bars in the world, made right here in the USA.

The housing is made of anodize matte black billet aluminum with a UV protected anodized finish for durability and years of great looks and super strong durability. This LED light bar can handle of the bumper, jars, and pounding you are truck gets on and off-road and still work under extreme conditions. The Luminix LED light bars are the rated, with a 400 lumens per LED output, 6000k color temperature for the absolute best offroad lighting experience. They have been vibration tested, dust, immersion, high spray water, salt and fog for superior performance. Manufactured by Putco of Des Moines, IA.

California Residents: Proposition 65 Warning

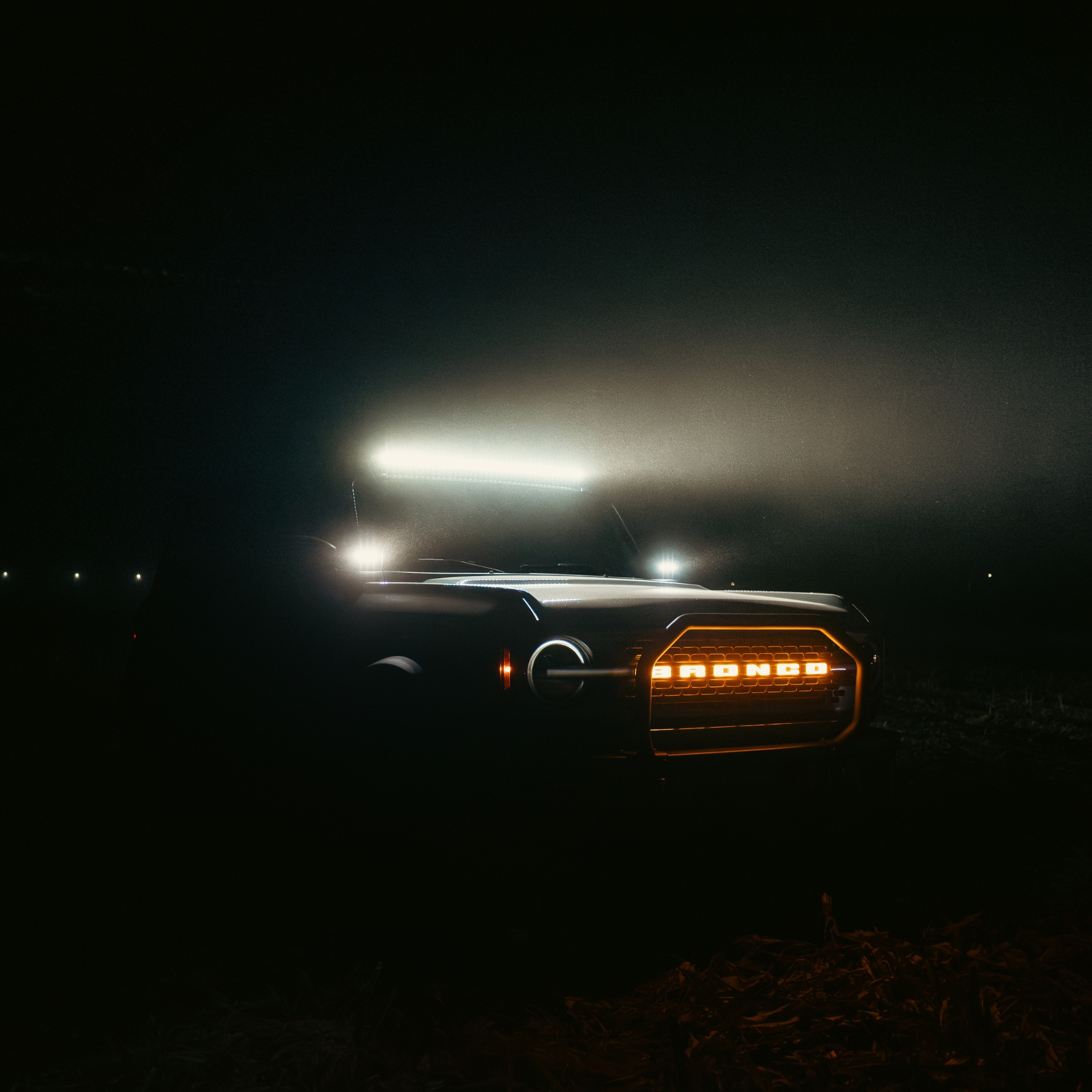

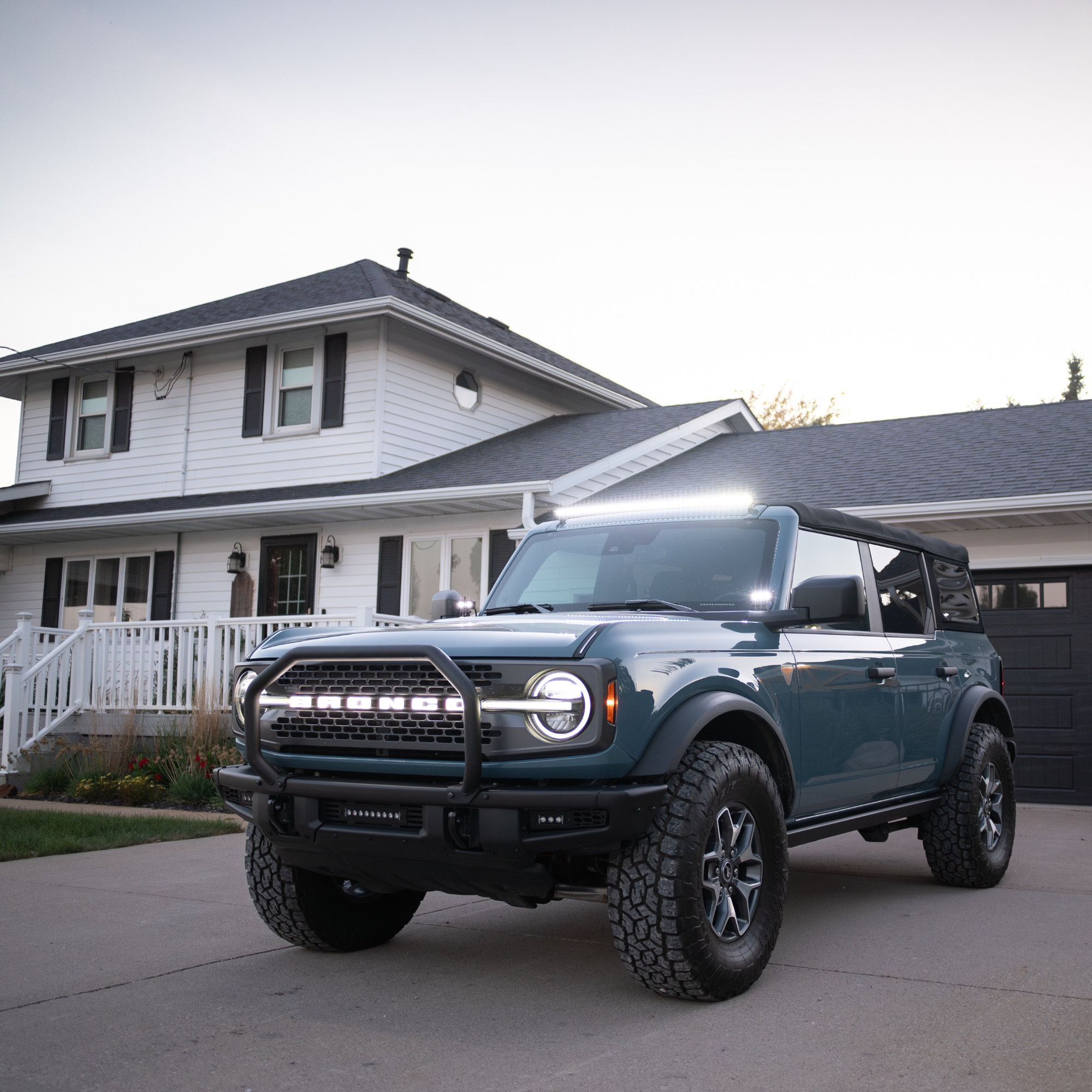

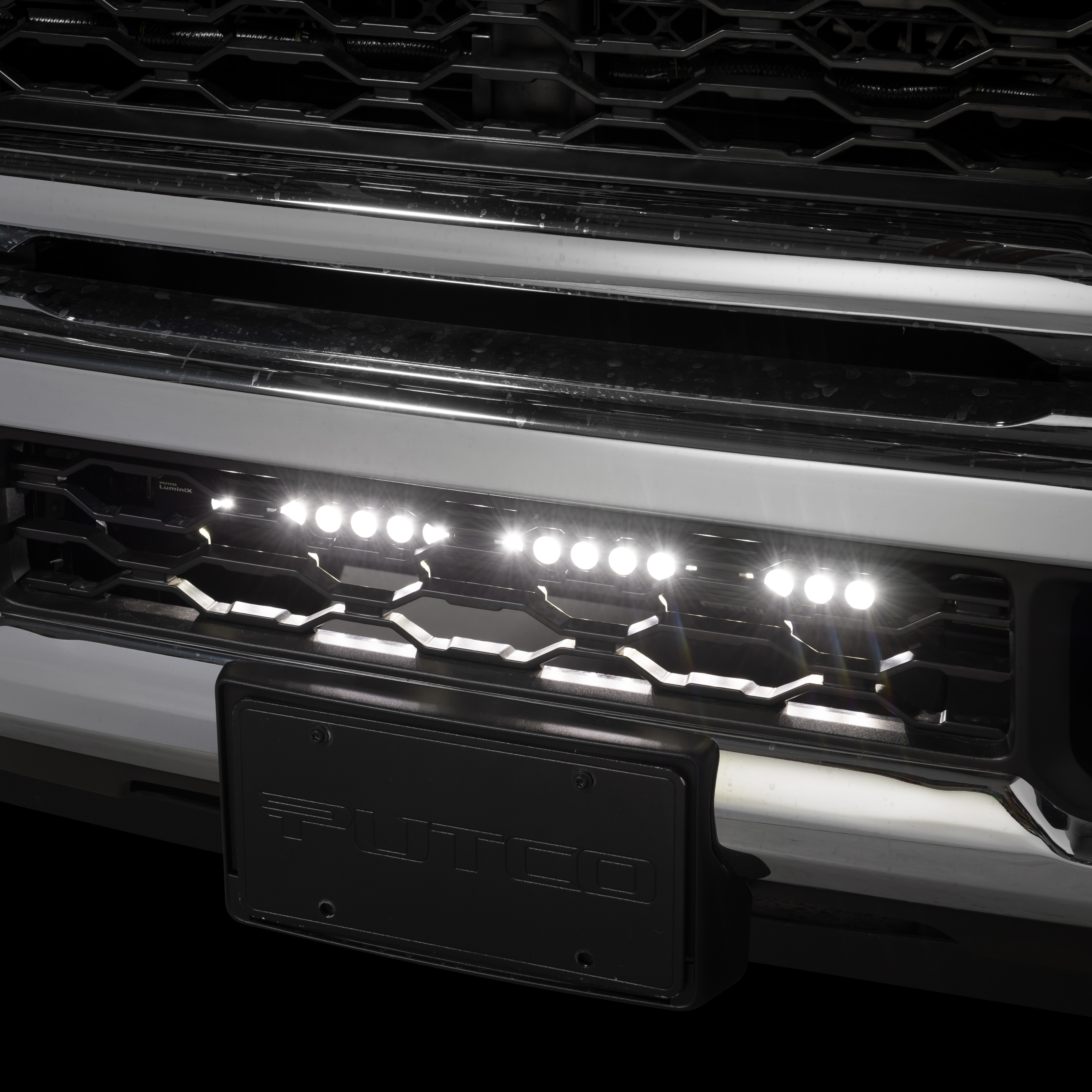

Putco's Luminix light bars timeless aluminum design that complements today’s vehicles with a powerful, aggressive look — Putco’s Luminix light bars timeless aluminum design that complements today’s vehicles with a powerful, aggressive look

Illuminate your path with unmatched brightness and style for any adventure

Video

Putco Luminix LED Light Bar Video

Specs

Putco Luminix LED Light Bar Specifications

SKU	Type	Bulb Type	Bulb Color	Lumens	Kelvin Scale

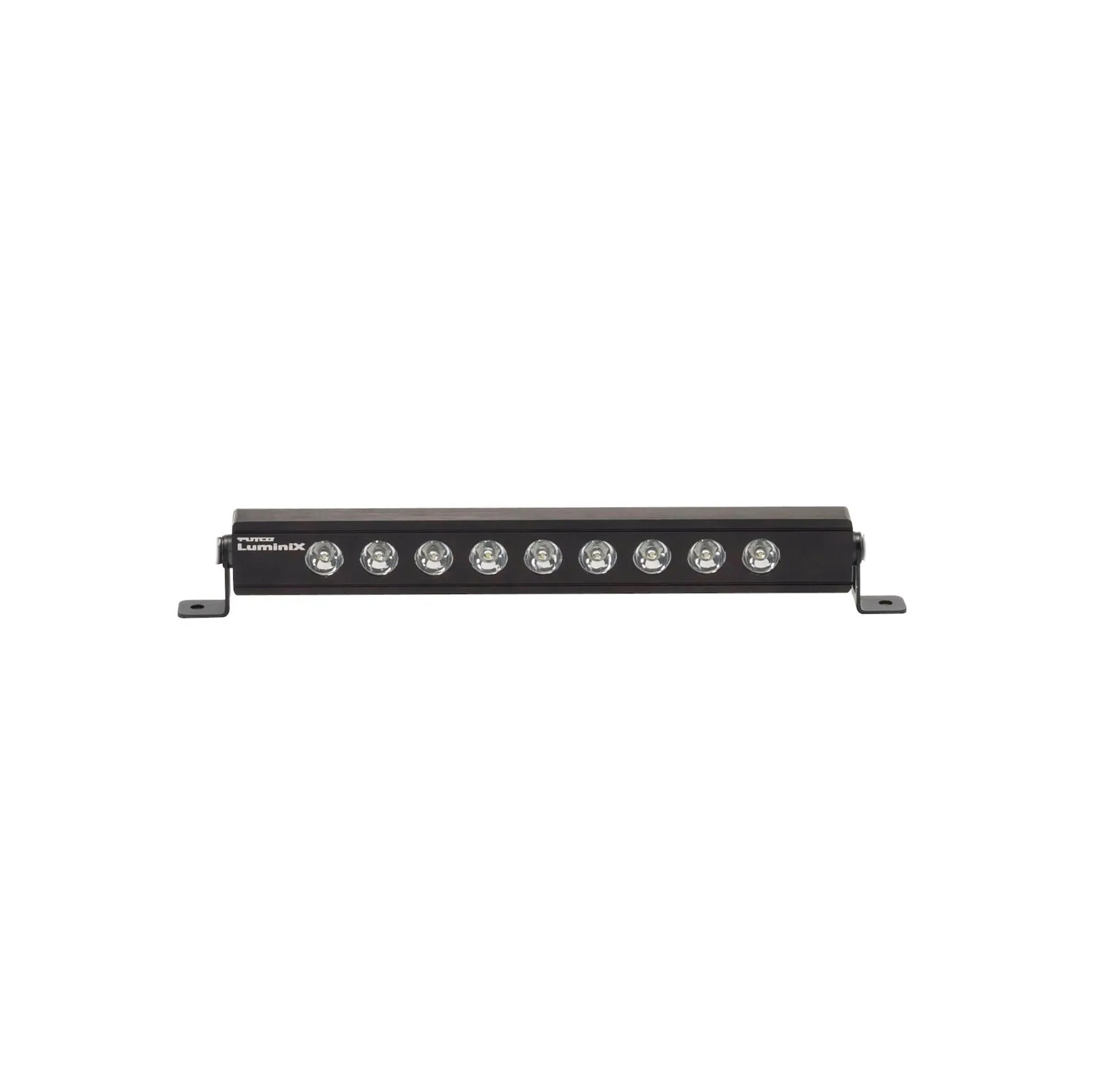

PUT-10010	Luminix High Power LED – 10″ Light Bar – 9 LED – 3,600LM – 11.64x.75×1.5 – Inches.	LED	White	3600	6000K

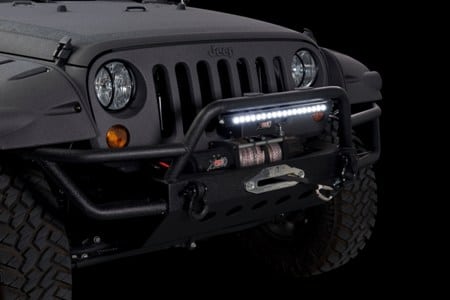

PUT-10020	Luminix High Power LED – 20″ Light Bar – 18 LED – 7,200LM – 21.63x.75×1.5 – Inches.	LED	White	7200	6000K

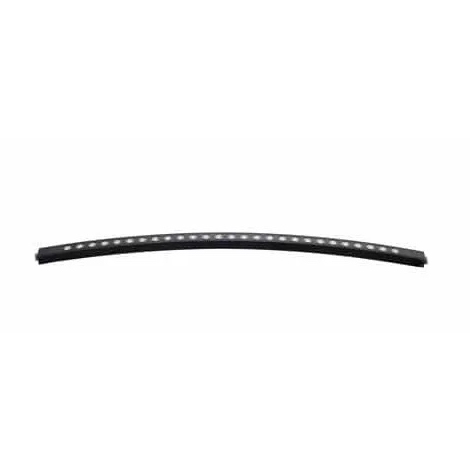

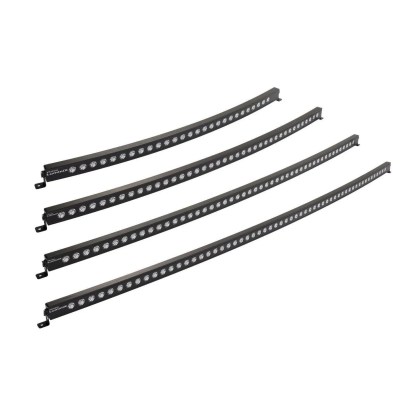

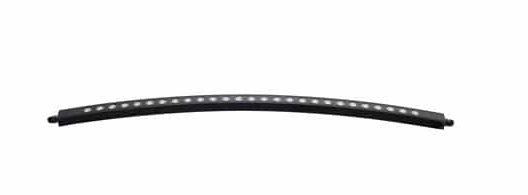

PUT-10033	Luminix High Power LED – 30″ Curved Light Bar – 27 LED – 10,800LM – 31.63x.75×1.5 – Inches – 6 Degrees.	LED	White	10800	6000K

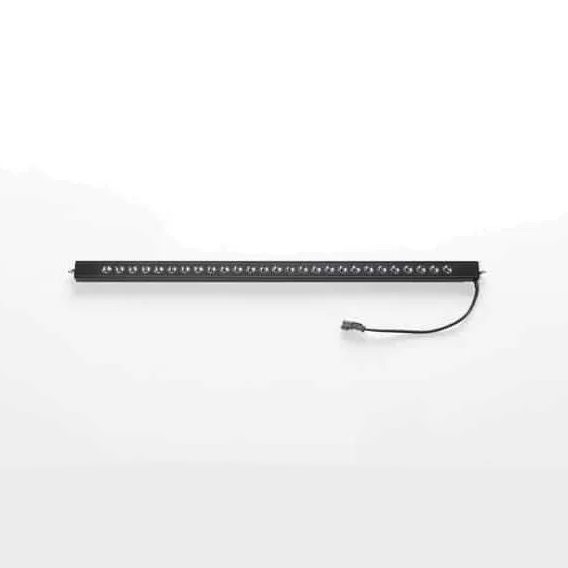

PUT-10030	Luminix High Power LED – 30″ Light Bar – 27 LED – 10,800LM – 31.63x.75×1.5 – Inches.	LED	White	10800	6000K

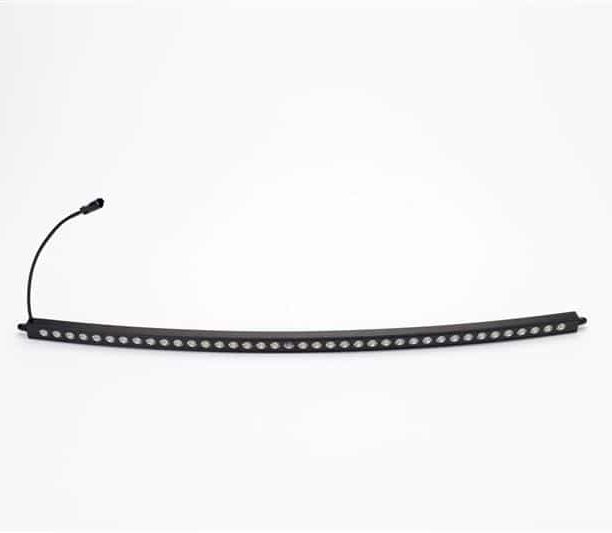

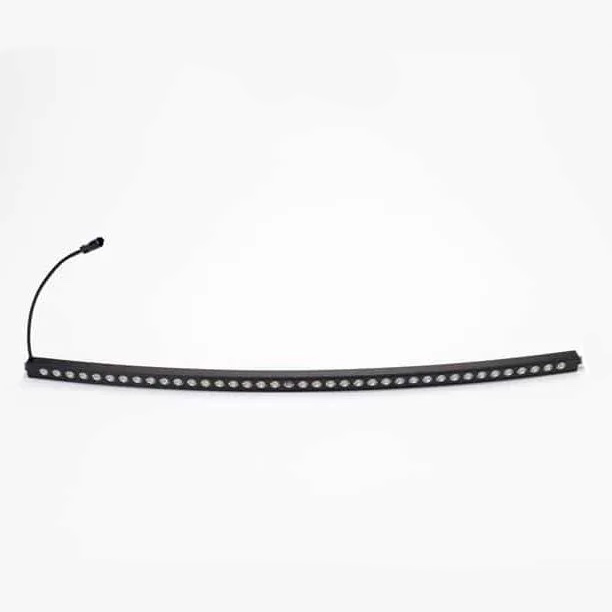

PUT-10046	Luminix High Power LED – 40″ Curved Light Bar – 39 LED – 15,600LM – 41.63x.75×1.5 – Inches – 6 degrees.	LED	White	15600	6000K

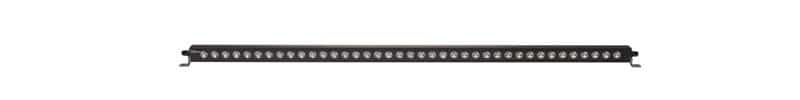

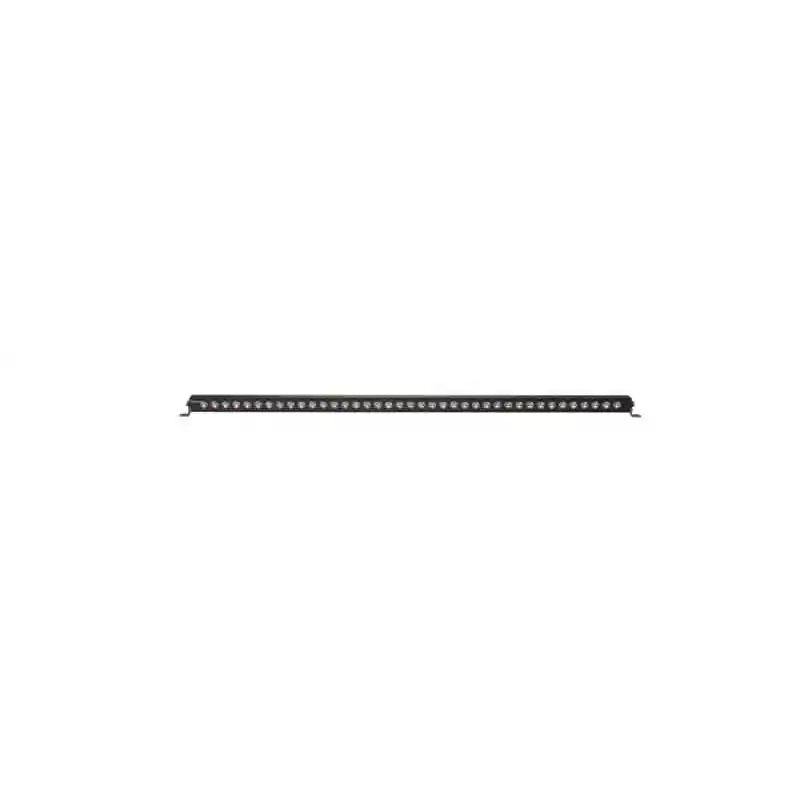

PUT-10040	Luminix High Power LED – 40″ Light Bar – 39 LED – 15,600LM – 41.63x.75×1.5 – Inches.	LED	White	15600	6000K
PUT-10055	Luminix High Power LED – 50″ Curved Light Bar – 48 LED – 19,200LM – 51.63x.75×1.5 – Inches – 6 Degrees.	LED	White	19200	6000K

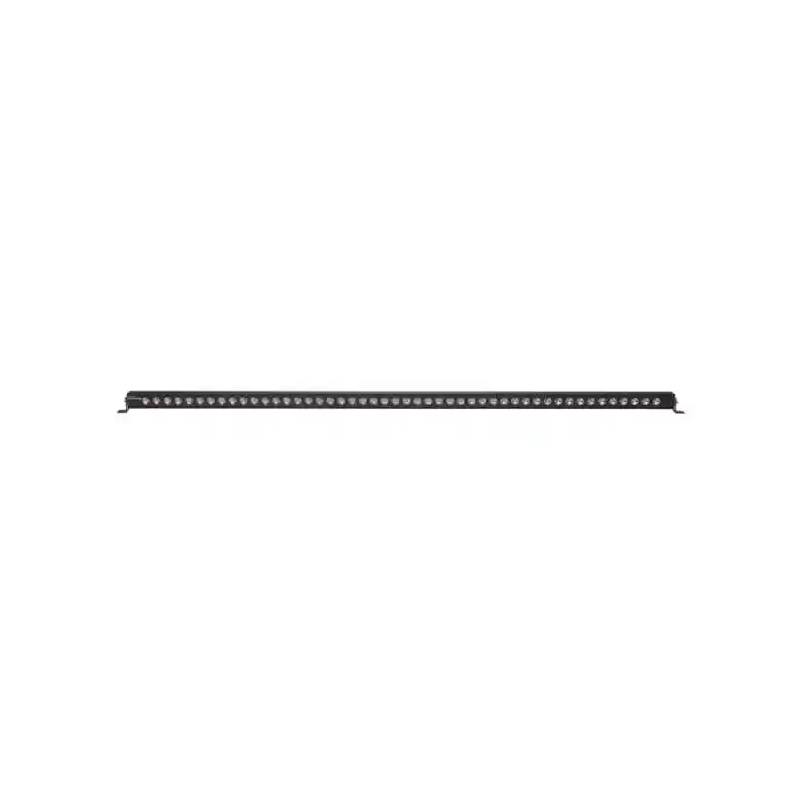

PUT-10050	Luminix High Power LED – 50″ Light Bar – 48 LED – 19,200LM – 51.63x.75×1.5 – Inches.	LED	White	19200	6000K

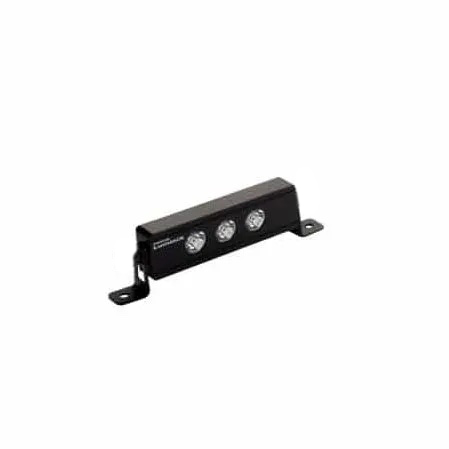

PUT-10006	Luminix High Power LED – 6″ LIGHT BAR – 3 LED – 1,200LM – 5x.75×1.5 – Inches.	LED	White	1200	6000K

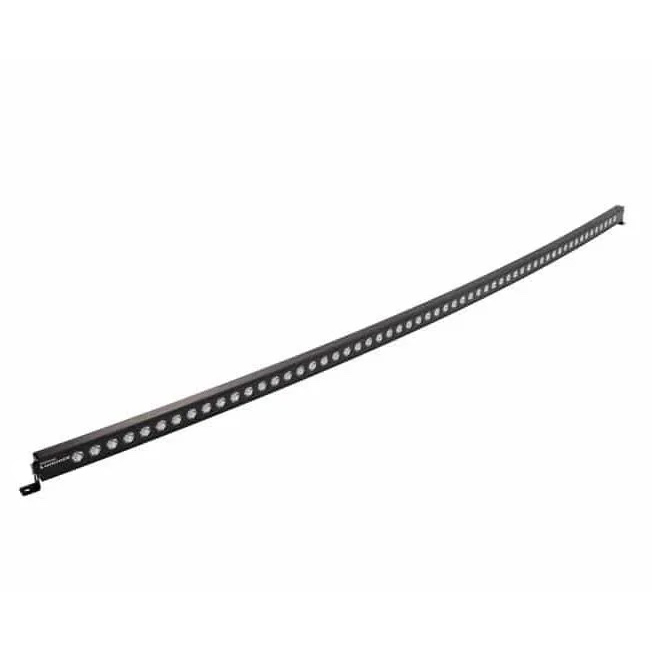

PUT-10063	Luminix High Power LED – 60″ Curved Light Bar – 57 LED – 22,800LM – 61.63x.75×1.5 – Inches – 6 degrees.	LED	White	22800	6000K

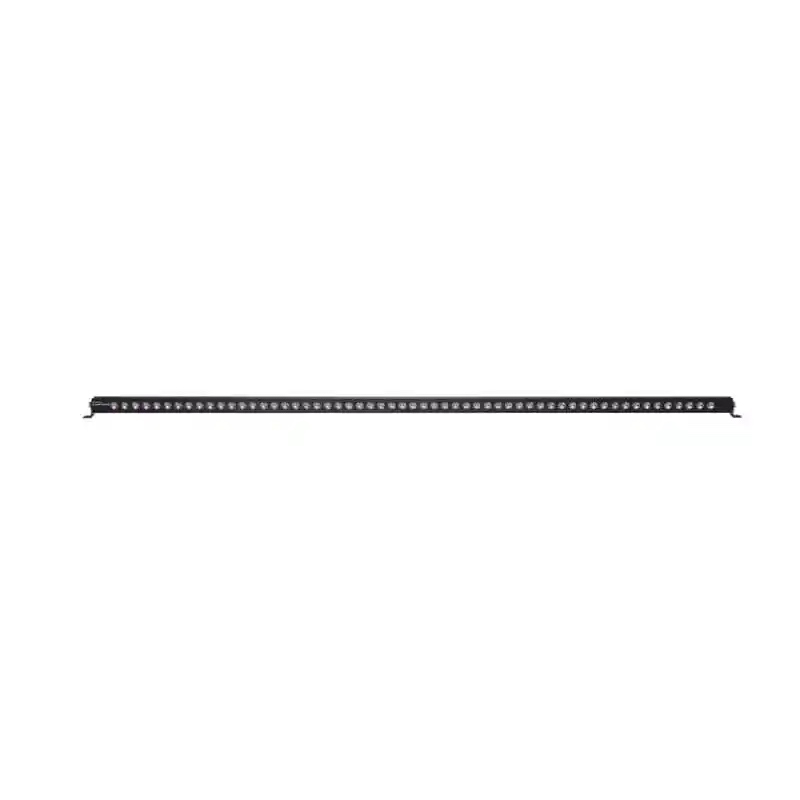

PUT-10060	Luminix High Power LED – 60″ Light Bar – 57 LED – 22,800LM – 61.63x.75×1.5 – Inches.	LED	White	22800	6000K

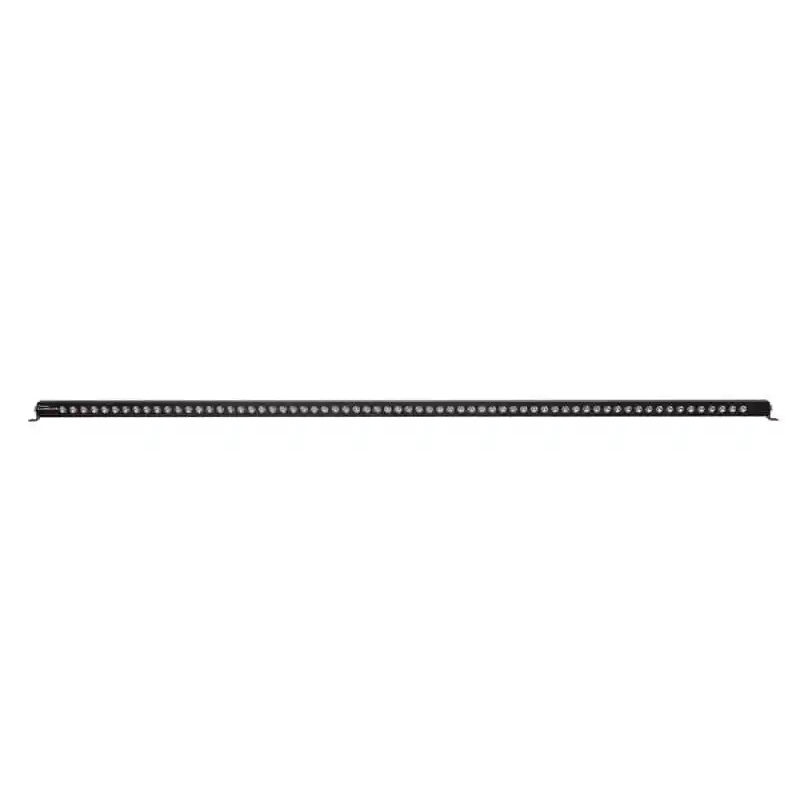

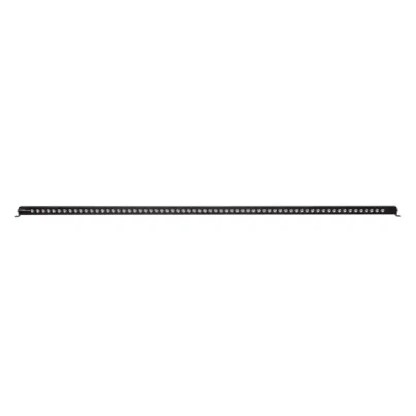

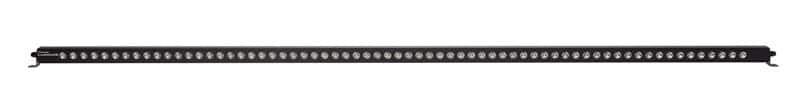

PUT-10070	Luminix High Power LED – 70″ Light Bar – 69 LED – 27,600LM – 71.63x.75×1.5 – Inches.	LED	White	27600	6000K

Install

Putco Luminix led light bar is fairly straight forward to install with Putco step by step instructions and included hardware. However, 12 volt light wiring experience is helpful.
